Product Description

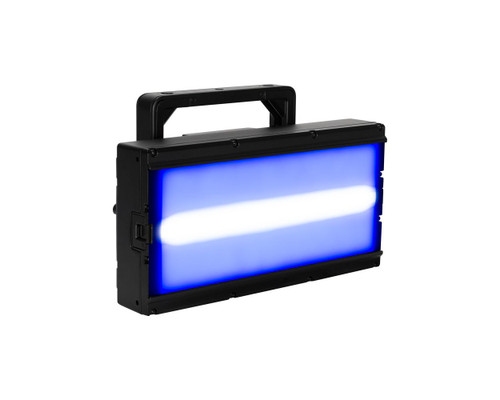

The Jolt Bar FXIP is an IP65-rated professional linear LED fixture that delivers Lighting Designers huge output as well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-colored chase effects in one versatile unit. It is a highly flexible fixture that can be used to create a wide variety of effects ideal for concert productions, festival stages and other largescale events.
Light Source:
• 448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt Cool White SMD LEDs
• 78° Beam Angle
• 117° Field Angle
• Color LEDs: Red: 620-630nm; Green: 515-525nm; Blue: 460-470nm
• Cool White LEDs: 6900-7400K
• CRI: 89
• 50,000 Hour Average LED Life
Features:
• 32 x RGB LED Zones
• 16 x Cool White LED Zones
• 25 Built-in RGB LED Program Macros
• 9 Built-in Cool White LED Program Macros
• 180 degree mounting bracket system
• IP65-rated (for temporary outdoor use)
• Aria X2 Wireless DMX Built-in
• Frost Lens Assembly
• Includes Alignment Bracket to attached units together
Control:
• Control Protocols: DMX, Aria X2 and RDM
• 13 DMX Channel Modes: 6, 9, 13, 16, 18, 32, 32A 38, 43, 64, 78, 112 and 126
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe, Shutter & Pulse Control
• Max Strobe Rate 25Hz; Min Strobe Rate: 0.35Hz
• Refresh Rate: 900Hz - 25kHz
• With Wired Digital Communication Network
• Display: OLED Menu (with 4 touch buttons)
Connections:
• Data: IP65-rated locking 5-pin DMX In/Out
• Power: IP65-rated Locking In/Out Sockets
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 214W @120V; 208W @230V
• Max Power Link: 6pcs @120V; 12pcs @230V
• Fuse Protected: T5A/250V Glass Fuse (5*20MM)
Dimensions / Weight:
• Length: 5.42" (137.5mm)
• Width: 39.4” (1000mm)
• Height: 4.19” (106.5mm)
• Weight: 20.5 lbs. (9.3kg)
What’s Included:
• 1 x IP65-rated 6ft (1.83m) Locking Socket to Edison Power Cable (U.S.)
• 1 x Frost Filter
• 2x Omega Receiver Brackets (Omega Clamps sold separately)
Approvals and Ratings:
• CE
• cETLus (Control # 4010765)
• IP65
Specifications are subject to change without notice.
