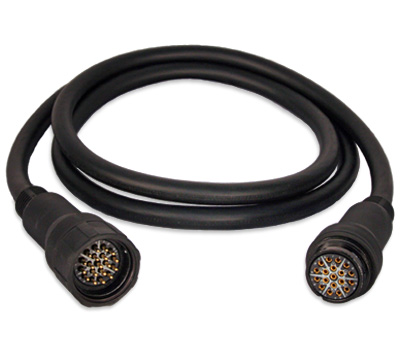

Product Description
Features & Benefits
- Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
- Pins and sockets cannot push back, extending life of the connector
- Rugged construction helps prevent broken conductors and loose or damaged ground rings
- Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
- Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
- Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
- Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
- Available in 12, 14 and 16 AWG to meet specific requirements
- 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
- Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
- Silver-plated brass contacts for high conductivity
- All black construction blends into scenery and is ideal for stage or studio lighting applications
Markets Served
Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
| Rating: | 20 Amp, 125 VAC, Single Pole, 2-Pole, 3-Wire NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44) |
|---|---|
| Male Plug: | (1) Molded 20A 19-Pin Male (Plug), Black NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors |
| Cable/Cord: | #12/14 Type TPR, Black |
| Length: | xxx = Length; 10', 25', 50', 75', 100', 125' Stock Lengths |
| Female Connector: | (1) Molded 20A 19-Pin Female (Connector), Black NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors |
| Agency Approval: | UL Listed |
