Product Description

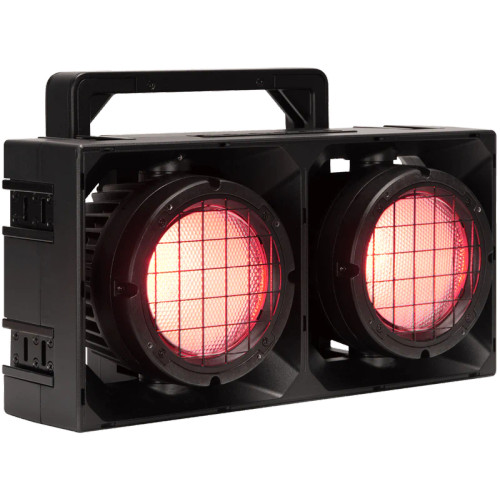

2x 350W RGBLAW LED Blinder IP65
SĊL II BLINDER is a professional-grade lighting solution. Maintaining all the innovative features of the SĊL I BLINDER, the SĊL II provides even greater flexibility for creative configurations and designs. The SĊL II’s housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration imaginable. This makes it easier than ever to build expansive lighting arrays, custom shapes, and versatile effects panels that truly stand out.
Introducing the SĊL II BLINDER, the next evolution in the SĊL Series, offering double the impact with two fixtures housed in a single modular unit, arranged side-by-side. Maintaining all the innovative features of the SĊL I BLINDER, the SĊL II provides even greater flexibility for creative configurations and designs.
The SĊL II's housing is designed for seamless connectivity on all sides, allowing multiple units to be stacked together in any configuration imaginable. This makes it easier than ever to build expansive lighting arrays, custom shapes, and versatile effects panels that truly stand out.
With the same powerful 350W RGB+Lime+Amber+White LED engine, 93+ CRI, and robust IP65 rating, the SĊL II BLINDER delivers unmatched brightness, color fidelity, and durability, just like its single-fixture counterpart. Whether you're using it as a standalone unit or integrating multiple fixtures into your design, the SĊL II BLINDER elevates your creative possibilities, offering limitless options for crafting unforgettable visual experiences.
Illuminate your stage with the enhanced power and flexibility of the SĊL II BLINDER "“ redefining what's possible in entertainment lighting design.
- 2x 350W RGBLAW LED
- 30,750 Total Fixture Lumen Output (Sphere)
- 46° Beam Angle
- Simple 'Array Mode' Addressing System
- Individual Pan Adjustment with Lock
- Dim-to-Warm/ Red Shift Emulation
- High Output Blinder Mode or Constant Output Mode Options
- Unique Horizonal and Vertical Array Rigging Method (Compatible with SĊL IV, SĊL I Blinder Frame, Pulse Panel, SIX+ BAR and PULSE BAR)
- IP65 Rated
Specifications
2x 350W RGBLAW LED
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
30,750 (Integrating Sphere)
CRI TBA
Compound Lens
Beam Angle: 46°
Field Angle: 85°
No Lens
Beam Angle: 52°
Field Angle: 95°
EFFECTS
Variable Strobe Rate: 1- 20Hz
Dim-to-Warm/ Red Shift Emulation
Variable 16-bit Dimming Modes and Curves
High Output Blinder Mode or Constant Output Mode Options
COLOR
RGBLAW Color Array
CMY Emulation
Variable CCT 1800K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
18 DMX Channel Modes (1ch, 2ch, 2ch, 4ch, 3ch, 5ch, 4ch, 8ch, 6ch, 12ch, 7ch, 10ch, 22ch, 37ch, 16ch, 25ch, 16ch 25 ch)
Simple 'Array Mode' Addressing System
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT (Without Accessories)
Length: 9.3" (236mm)
Width: 16.5” (420mm)
Vertical Height: 10.3” (261mm)
Weight (Fixture Only): 24.7 lbs (11.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
650W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 2216.5
INCLUDED ITEMS
Removable Fixture Yoke / Omega Bracket
2x Fixture Interconnect splices
Safety Cable
IP65 Locking Power Cable
OPTIONAL ITEMS
SĊL/PULSE HD Yoke (SPHDY)
SĊL Fresnel Lens (SĊLFL)
SĊL Frosted Lens (SĊLFRO)
SĊL Bowens Adapter (SĊLBA)
SĊL Dome Lens (SĊLDL)
SĊL Blackout Lens (SĊLBL)
SĊL Gel Frame Holder Kit (SĊLGFHK)
SĊL Barndoor (SĊLBD)
Fixture Interconnect splice Package (FISP06)
Interconnect Clamp Adapter (FICA01)
# 8050000053 - Omega Bracket
APPROVALS / RATINGS
CE | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Update:
Specifications and documentation subject to change without notice.
