Product Description

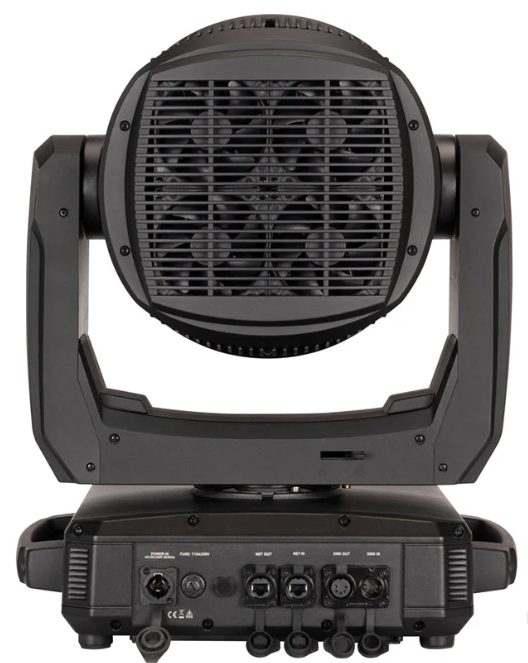

Hydro Flex L19 is an IP65-rated 1,140W professional moving head wash fixture with nineteen 60W RGBL LEDs with individual pixel control, tunable white color temperature control (2,700K – 10,000K), motorized zoom and includes Aria X2 wireless management system built-in. With a rugged IP65-rated case design, a potent LED engine, and a wealth of professional-grade features, the Hydro Flex L19 is a great solution for outdoor or indoor stage environments.
Specifications
• 19 x 60-Watt RGBL LEDs (50,000 hr.)
• CRI: 84.2
• TM30 Rf: 71.1
• TM30 Rg: 119.8
• Color Temperature: 2700K ~ 10,000K
• 54,400 lux / 4.3° beam @ 16’ (5m)
• 2,090 lux / 28.3° beam @ 16’ (5m)
• Lumens: 17,000 (Zoomed Out, Full On)
Features:
• Moving Light Pixel Wash
• Individual Pixel Control
• Built-In Pixel Effect Programs
• Aria X2 Wireless Management System
• Electronic Strobe / Dimmer
• Pan/Tilt: 540/630 x 243
• Motorized Zoom
• Beam Angle: 5° ~ 38°
• Field Angle: 8° ~ 56°
• Color Calibrated Pixels so units match from batch to batch
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• 0-100% smooth dimming
• Fan Cooled
Colors:
• 19x RGBL LEDs (Red, Green, Blue and Lime)
• Virtual CMY DMX Control Modes
• Virtual Foreground and Background Color Wheel Control
• Built-In Color Macros
• 2,700K ~ 10,000K Linear White Color Temperature Control
• Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K
Control:
• 6 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
• Color LCD display with 6-button function menu
• Control: DMX512, ArtNet, sACN and Aria X2 Wireless Management System
• Built-In Effect Pixel Programs with Speed and Fade Control
• RDM (Remote Device Management) compliant
• With Wired Digital Communication Network
Pan/Tilt:
• Pan: 540/630 degrees
• Tilt: 243 degrees
• 16-Bit Fine Pan Tilt
• Pan Tilt Locks
Connections:
• DMX Connections: IP65-rated Locking In/Out XLR Sockets
• IP65-rated Locking In/Out RJ45 Network Sockets
• Power Connections: IP65-rated Locking In/Out Power Sockets
Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 1400W (11.85Amps) @ 120V. 1350W (6.38Amps) @ 220V.
Dimensions Weight:
• Dimensions (LxWxH): 12.5”L x 17.04”W x 20.36”H (318x433x517mm)
• Weight: 60.8lbs (27.6kg)
What’s Included:
• 180mm Omega Brackets (2x)
• 1x 1.83M, IP65-rated locking power cable
• Safety Cable
Approvals / Rating:
cETLus (Control # 4010765)
CE Certified
FCC
UKCA
IP65
Specifications subject to change without notice
