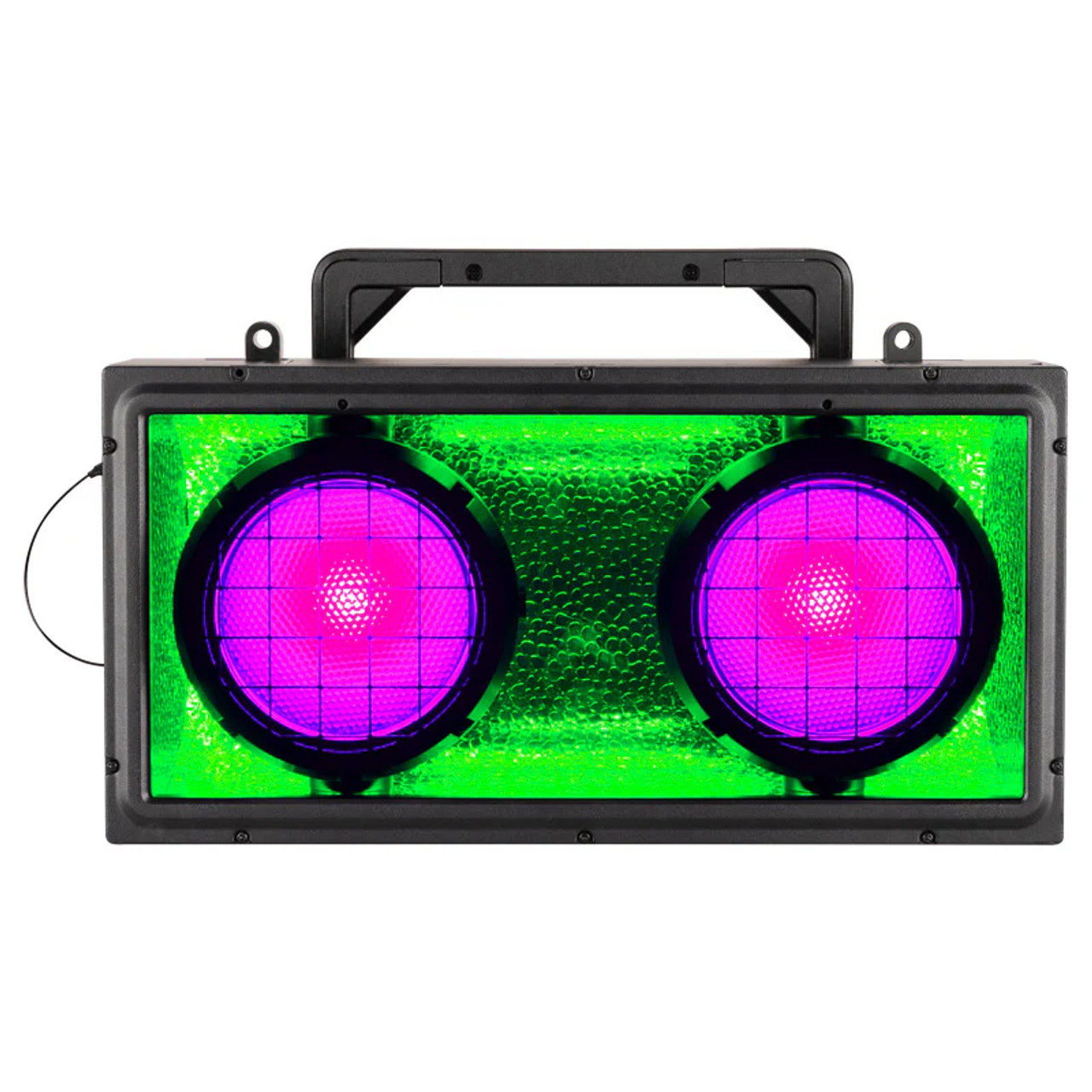

ADJ Encore DBX



With features like individually controllable cells, built-in programs, and variable white color temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Bluetooth, and the Aria X2 wireless management system for over the air firmware/software updates, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.



Features:

2 Cell, Five Color (RGBAW) LED Blinder

Background RGB LEDs

Individually Controllable Cells

Built-In Cell Programs

Built-In Background LED Programs

Tungsten Control Mode

Variable White Color Temperature Control (2,700K ~ 6,500K)

User Selectable LED Refresh Rates (900Hz ~ 25K)

6 User Selectable Dim Modes

4 User Selectable Dim Curves

Electronic Strobe (1 ~ 20Hz)

Electronic Dimming

Aria X2 Wireless Management System



Source:

2x 150W RGBAW LED's

RGB Background LED's

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.



Photometrics:

Total Lumen Output: 11,465

CRI: 89



Optical:

Beam Angle: TBA

Field Angle: TBA



Effects:

Variable Strobe Rate: 1- 20Hz

Variable 16-bit Dimming Modes and Curves

RGB Background Reflector Effect



Color:

RGBAW Color Array

RGB Background

Variable CCT 2700K - 6500K + five presets



Physical:

IP65 Housing

OLED Digital display

Adjustable Mounting Yoke with Omega Receivers

Second Set of Omega Receivers on Rear



Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM (Remote Device Management)

(21) DMX Channel Modes (1CH/ 2CH-A / 2CH-B / 4 CH / 5CH / 8CH / 10CH / 11CH / 12CH-A / 12CH-B / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)

On-board Manual Control Mode

Primary / Secondary Mode



Connections:

5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

IP65 Locking Power Sockets

Locking Pin System to connect fixtures in an array pattern vertically or horizontally (Hang up to 8 fixtures maximum vertically)



Dimensions & Weight:

Length: 16.54” (420mm) Width: 10.28” (261mm) Height: 9.11” (231.3mm)

Weight: 26.1 lbs. (11.85 kg)



Power:

AC100-240V/50Hz-60Hz Input

347W Power Consumption

Link 2 pieces @120VAC or 6 pieces @ 230VAC



Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)



Certifications & IP Rating:

CE

cETLus (Pending)

FCC

IP65



Included Accessories:

(1) Outdoor Locking Power Cable

(1) Safety Cable



Specifications and documentation subject to change without notice.
