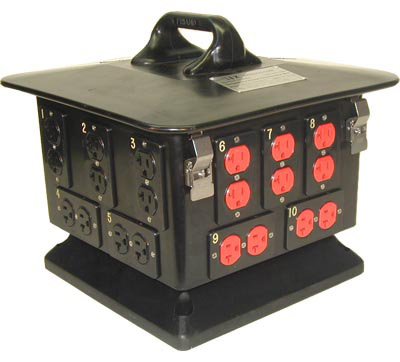

Lex Pagoda with Duplex Receptacle Outlets

Image 1
  • Image 1
Price:
$1,219.98
SKU:
DB100A-A401520
Brand:
Lex
Availability:
Usually ships within 4 days
Shipping:
Calculated at checkout
Quantity:

Product Description

Lex Pagoda with Duplex Receptacle Outlets

Product Line

PowerHOUSE™ Portable Distribution Boxes

Description

100 A, 3 Ø Pagoda (A40) to (15) NEMA 5-20 Duplex Receptacles, NEMA 1 Indoor.

Catalog Number

DB100A-A401520

Markets Served

Live Events, Concert Touring, Convention Centers, Motion Picture, Industrial, Military

Application

The most versatile PowerHOUSE™ Portable Distribution Box. Fed from a generator or panel, this box can accept up to 30 NEMA 5-15 Edison cords in an extremely compact package.

Features & Benefits

  • Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
  • Extremely compact for convenient portability.
  • Breakers located under hinged lid for enhanced safety.

Specifications

  • Rating:
    100 A, 3 Ø, 120/208 VAC
  • Enclosure:
    PAGODA, NEMA 1 Indoor
  • Output:
    (15) NEMA 5-20, 20 A, 2P3W, 125 VAC duplex receptacles
  • Overcurrent Protection:
    (15) 20 A, 1-Pole branch circuit rated breakers
  • Overall Dimensions:
    14-1/2” L x 14-1/2” W x 14” H
  • Weight:
    32 lbs

UL Listed

Yes

Enclosure Type

Heavy Duty Molded Rubber
