Product Line

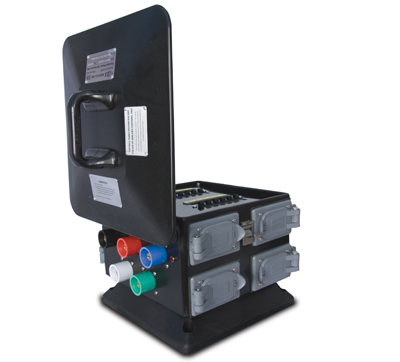

PowerHOUSE™ Portable Distribution Boxes

Description

100 Amp, 3 Ø, Cam-Type Input to (12) 20 Amp NEMA 5-20 GFCI Duplex Receptacles, NEMA 3R Weatherproof.

Catalog Number

DB100NP-AQQ-S3

Markets Served

Live Events, Industrial

Application

Breaks 100 Amp 3 Phase Circuit into (12) 20 Amp GFCI overcurrent protected circuits for distribution purposes.

Typical Uses

Features & Benefits

• Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather.
• Extremely compact for convenient portability.
• Meets NEC requirements for properly rated branch circuit protection when downsizing cable.

Specifications

• Enclosure:
  Pagoda
• Rating:
  100 Amp, 3 Ø, 120/208 VAC, 4 Pole 5 Wire
• Input:
  (5) 16 Series Cam-type Male devices
• Output:
  (12) NEMA 5-20, 20 A, 2P3W, 125 VAC GFCI duplex receptacles
• Overcurrent Protection:
  (12) 20 A, 1-Pole Branch Circuit Rated Breakers
• Overall Dimensions:
  11” L x 11” W x 13” H
• Weight:
    33 lb
• Enclosure Type:
    NEMA 3R Weatherproof

Agency Approvals

Yes

Enclosure Type

Heavy Duty Molded Rubber
