Description

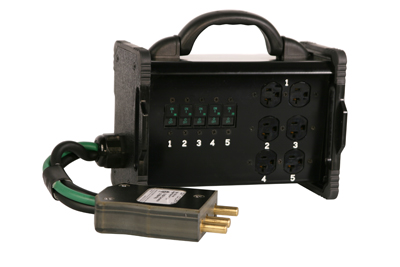

100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, Bento Enclosure, Stage Pin plug on 12 inch SC Cable tail to (3) NEMA 5-20, 20 Amp duplex receptacles, split wired for 20 Amp (5) circuits, NEMA 1 Indoor

Catalog Number

Markets Served

Motion Picture and Television Production

Application

This compact unit provides convenient NEMA 5-20, 20 Amp household type receptacles to power lights on motion picture sets.

Features & Benefits

• Stackable and compact for easy storage
• Heavy duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock, impact and corrosion
• Breakers are mounted flush for easy access and circuit identification
• Collapsible handle and end plate grips for easy handling in tight spaces
• Hydraulic magnetic breakers will not nuisance trip at higher temperatures

Specifications

• Rating: 100 Amp, Single Phase (H, N G), 2 Pole, 3 Wire, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 100 Amp Stage Pin plug on 12 inch SC Cable tail, Single Phase, 2 Pole, 3 Wire, 120 VAC
• Output: (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC (Split Wired) duplex receptacles split wired for 20 Amp (5) circuits
• Feed Thru: None
• Overcurrent Protection: (5) 20 Amp hydraulic megnetic branch circuit rated breakers
• Dimensions: 10.5" L x 5.9" W x 7.6" H
• Approximate Weight: 7.8 lbs.
