Description

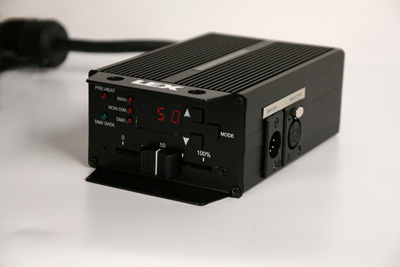

Slim Dimmer Plus is a compact, full featured 1800W dimmer. It can be used in situations where one dimmer or one more dimmer is needed.

Catalog Number

LDP1.8K

Markets Served

Entertainment, Motion Picture and Television Production

Application

Use one or more Slim Dimmer Plus to balance location lighting or to dim entertainment lighting. Can also be used in situations where "one more dimmer" is needed.

Typical Uses

The Slim dimmer Plus can be used as a part of a location lighting kit, to balance the lighting from several sources, controlled locally. It can be used to augment an entertainment lighting system, and be controlled from a lighting console.

Features & Benefits

• Controllable using both DMX512 and a front panel fader for maximum versatility
• Large display showing dimmer level and DMX address for easy setup
• Durable, compact construction for long life and relaibility
• Easily hangable with a variety of hanging options

Specifications

• Rating:
  15A, 1Ø, 120VAC, 60 Hz, 2P, 3W
• Input:
  5-15 Edison on an 18" 12/3 SO cable
• Output:
  Single 5-15 outlet
• Maximum Load:
  1800W
• Minimum Load:
  60W
• Overcurrent Protection:
  15A push to reset breaker
• Overall Dimensions:
  7.3" L x 4.15" W x 2.5" H
• Weight:
  2.1 lbs.

Agency Approvals

cULus Listed - Approved for use in the U.S. and Canada
