19 Pin Connectors

Description

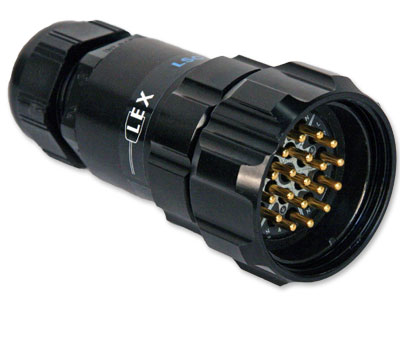

19 Pin Six Circuit, 20 Amp, 600 VAC Max Inline Solder Male Connector, Black Finish, Socapex-Compatible

Catalog Number

LSC19-LMS-29

Markets Served

• Motion Picture & Television Production
• Outdoor Events
• Entertainment Theatre
• Concert Touring
• Live Events
• Convention Centers
• Sporting Events
• OEM

Application

Connecting power to six circuits of theatrical or motion picture luminaires. Assembly or repair of 6-circuit lighting extension cables and equipment cables.

Features & Benefits

• Machined Aluminum Housing with hard anodized finish provides maximum durability. Precision machined threads on coupling ring and female housing provide ease of mating and long life.
• Skintop® strain relief keeps strain off terminals on the widest range of cables.
• Thermoplastic Insulating Sleeve prevents stray wire strands from potentially energizing the housing.
• Flexible rubber contact inserts promote individual pin and socket alignment for reliable connections.

Specifications

• Compatibility: Socapex-Compatible
• Housing Material: Machined aluminum, black anodized finish
• Inserts: Rubber
• Conductors: 19
• Agency Approvals: UL Recognized
• Termination Style: Solder Pin, 12AWG or 14AWG (Pins included)
• Strain Relief Type: Skintop PG29, accomodates 0.55-1.0" diameter cable.

Rating

20A 600VAC Max when used with 50% diversity of load (in accordance with Table NEC 520-44)
