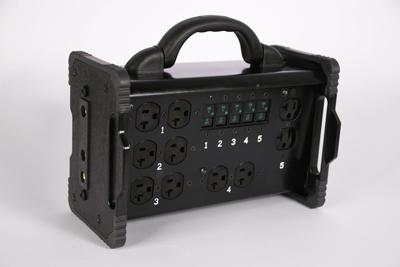

100 Amp, 1 Phase, 2 Pole, 3 Wire, 120 VAC, Bento Style Enclosure, stage pin inlet, to (5) NEMA 5-20 20 Amp duplex receptacles. NEMA 1 Indoor, feed thru

Catalog Number

Ordering Information

Custom configurations are available to meet your power distribution needs. Contact your Lex salesperson for a customized quote, or submit a Custom Distribution Box Request Form.

Markets Served

• Theatrical
• Motion Picture and Television

Application

Fed from larger power sources, this compact distribution unit provides 5-20 duplex receptacles for smaller lights and related equipment. The feed thru feature allows multiple boxes on the same feed.

Features & Benefits

• Stackable and compact for easy storage
• Easily fit six in a standard six-gallon milk crate for portability
• Heavy duty extruded PVC enclosure is electrically insulated, resistant to shock, impact and corrosion
• Breakers are mounted flush for easy access and circuit identification
• Collapsible handle and end plate grips for easy handling in tight spaces

Specifications

• Rating:
  100 Amp 1 Phase 2 Pole, 3 Wire (H,N,G) 120 VAC, 60 Hz

• Enviromental Rating:
  NEMA 1 Indoor
• Input:
  (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC stage pin inlet
• Output:
  (5) NEMA 5-20, 20 Amp, 1 Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacle

• Feed Thru:
  (1) 100 Amp, 1 Phase, 2 Pole, 3 Wire, 120 VAC stage pin receptacle

• Overcurrent Protection:
  All outlets protected by branch circuit rated breakers

• Enclosure:
  Bento Style

• Overall Dimensions:
  5.9"L x 7.5"W x 11.5"H
• Weight:
  7.5 lbs.
