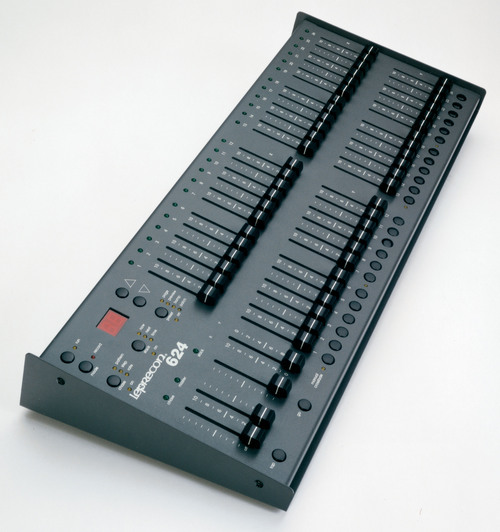

Leprecon LP-624 DMX, MPX Console

Leprecon’s twelve channel LP-612 or twenty-four channel LP-624 consoles incorporate the

same full travel faders and rugged aluminum chassis design that make our touring consoles

the most reliable in the industry. With full size fader knobs, quick action-bump buttons, and

big bright LED’s, these consoles were designed and built for professional use.

The console includes: two scene preset mode with twelve or twenty-four channels; switchable

Add or Solo momentary buttons for each channel; and dipless crossfade between manual

scenes. Presets may be “piled on” in any combination, and are assigned to one of four

memory pages. Preview mode allows cues to be checked without bringing up the scene

on stage. An existing cue may be easily edited using the manual scene faders without rerecording

the entire cue.

Cue Stack offers 50 programmable cues with crossfader and “GO” button control. Fade times may be assigned to each scene. A two-character display is used to

indicate current or new cue and programmed fade times assigned to each scene. Four programmed and seven programmable patterns of up to 20 steps are provided.

Programmable patterns are recorded, previewed, and edited as easily as the preset cues. The rate of each pattern may be saved with the chase, eliminating the need to

adjust the rate pot when chase is recalled. Control outputs include 3-pin microplex and 5-pin DMX-512 standard.  All protocols can

be used simultaneously.
