Applied Electronics 12x12 Plated All Purpose Truss, 2.5' Length
Price:
$248.00 - Please call or email for shipping quote
SKU:
11-12-030
Brand:
Availability:
Usually ships within 5 days
Product Description

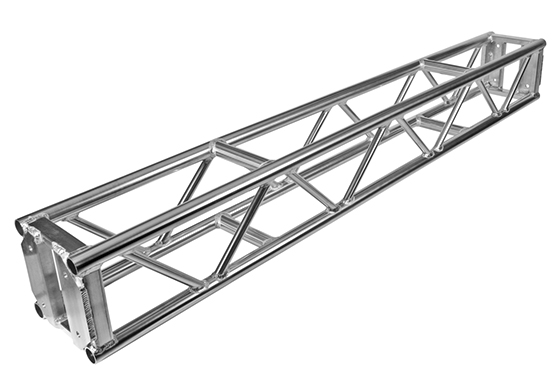

Applied Electronics 12x12 Plated All Purpose Truss, 2.5' Length
Features
- Highly Polished Aluminum Tubing
- 1.9" OD 6061-T6 Aluminum Tube Schd #40
- .145" Wall Thickness
- 1.05" OD Aluminum Bracing
- Fabricated By Certified Welders
- Custom Lengths and Corners Available
- Available With Steel Spigots
- Powder Coating Available
All Purpose Box Truss Corner Adapters
- 5-Way Corner Block
- 45 Degree Corner
- Hinged Corner
| WEIGHT LOADING INFORMATION | ||
|---|---|---|
| Plated Allowable Load Data | ||
| Length | Uniform Distribution |
Center Point Load |
| 10' Span | 6040 lbs. | 2940 lbs. |
| 20' Span | 4240 lbs. | 2122 lbs. |
| 30' Span | 2520 lbs. | 1364 lbs. |
| 40' Span | 1120 lbs. | 565 lbs. |
| *Weight Load Certified By Structural Engineer | ||
