Product Description

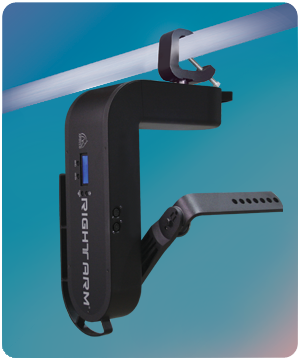

Apollo Right Arm

3 Upgraded Features:

LCD Screen
User defined pan and tilt range
(1) 5-pin output
(1) 4-pin output

The Right Arm adds pan and tilt capabilities to a wide range of static theatrical and studio lighting fixtures, allowing the designer to maximize the lighting rig without crowding fixtures or over-extending the budget. Video cameras and LCD projectors can be blended into the lighting rig with minimal preparation, providing easy adjustment from the lighting console. The Right Arm conveniently repositions these devices in theatrical and church productions, corporate events, trade shows - anywhere flexibility in the light plot is needed.

Compatible Fixtures:	Adjustable to accommodate various fixtures and allow for color changers and dousers.
Dimensions and Key Components:
Height:	26" (660.4mm) with clamp
Height:	23.3" (591.8mm)
Width:	15" (381mm)
Depth:	7" (177.8mm)
Weight:	28lb (12.7kg) without fixture
Shipping Weight:	34lb (17.5kg) without fixture
Capacity:	40lb (18.1kg)
Pan:	300°
Pan Speed:	180° in 6 seconds
Pan Torque:	5 foot-pounds average
Tilt:	270°
Tilt Speed:	180° in 6 seconds
Tilt Torque:	10 foot-pounds average
Ratings:	UL STD 73 Compliant CE
Drive System:	High Torque Stepper Motors
Power:	Built-in Universal Power Supply
Operating Voltage:	90-260 VAC, 50/60 Hz (auto select)
Arm Rated Power:	50 VA maximum
Fixture Power Cord Rating:	15 amps, 250 volts max
Accessory Port Power Total:	24 volts DC
Current Required for Right Arm Alone:	.5 amps
Data/Power Transmission
Power Cables:	1 for Arm (connector not included) 1 for fixture (connector not included)
Data Connectors:	XLR 5-pin, male/female
Accessory Outputs:	1 XLR 5-pin, female; 1 XLR 4-pin female
Warranty:	Items are covered for defects in materials and workmanship for one year, including repair parts and repair labor on defective item, from date of Apollo invoice. The warranty covers freight for 30 days after initial purchase. Apollo does not cover any other loss resulting from product failure. Products being returned for warranty repair must display the original serial number sticker. Removal of the serial number voids the product's limited warranty.

Product Videos

Apollo Right Arm (02:46)

The Right Arm adds pan and tilt capabilities to a wide range of static theatrical and studio lighting fixtures, allowing the designer to maximize the lighting rig without crowding fixtures or over-extending the budget. Video cameras and LCD projectors can be blended into the lighting rig with minimal preparation, providing easy adjustment from the lighting console. The Right Arm conveniently repositions these devices in theatrical and church productions, corporate events, trade shows - anywhere flexibility in the light plot is needed. Video created for Apollo by Blue Pony Digital.
