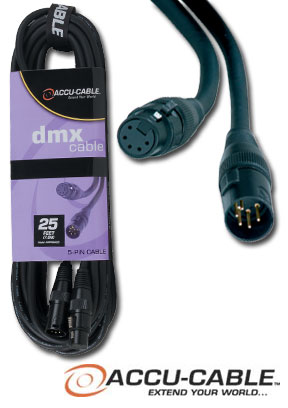

5 Pin Data Cable.
Available in 5', 10', 25', 50', 100' lengths


Description:
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Physical Characteristics:
Conductor:

• Number of Pairs: 2

• Total Number of Conductors: 4

• AWG: 22

• Stranding: 0.15 x 19

• Conductor Diameter: .0354"

• Conduct or Material: TC-Tinned Copper

Insulation:
Insulation Material PE Polyethylene

Lay Length:

• Lay Length: 1.1"

• Direction: Left Hand Lay

• Twists: 10.9 per foot

Inner Jacket:

• Inner Jacket Material: PE- Polyethylene

• Inner Jacket Diameter: .055"

• Pair Color Code: Green/Black/Red/White

Outer Shield:

• Outer Shield Trade Name: Duofoil®

• Outer Shield Type: Tape/Braid

Outer Shield Material:

• Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100

• Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket:

• Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter:

• Overall Nominal Diameter: .295"

Mechanical Characteristics:

• Operating Temperature Range: (-30 degrees C To + 75 degrees C)

• Bulk Cable Weight: 50 lbs/1000

• Minimum Bend Radius (Install): 3.5"

• Maximum Recommended Pull Tension: 22 lbs.

Electrical Characteristics:

• Nominal Characteristic Impedence: 110 Ohms

• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t

• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft

• Nominal Velocity of Propagation: 76%

• Nominal Delay: 1.6 Nanoseconds per foot

• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft

• Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft

• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.

• Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
